AddUserInformation(Byte,Byte[]) Method

Appends a User-defined item to the DICOM Associate.

Syntax

Visual Basic
C#
WinRT C#
Objective-C
Java
WinRT JavaScript
C++

public void AddUserInformation(
   byte type,
   byte[] data
)

'Declaration

Public Overloads Sub AddUserInformation( _
   ByVal type As Byte, _
   ByVal data() As Byte _
)

'Usage

Dim instance As DicomAssociate
Dim type As Byte
Dim data() As Byte

instance.AddUserInformation(type, data)

public void AddUserInformation(
   byte type,
   byte[] data
)

ObjectiveC Syntax

 function Leadtools.Dicom.DicomAssociate.AddUserInformation(Byte,Byte[])(
   type ,
   data
)

public:
void AddUserInformation(
   byte type,
   array<byte>^ data
)

Parameters

type: Type of the User-defined item.
data: Buffer that contains the data for the User-defined item.

Remarks

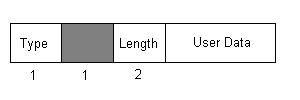

User-defined items may be included in the DICOM Associate to provide any other data the user finds necessary when establishing a DICOM Associate connection. The basic structure of the User-defined item is

where the Type, Length and User Data are all determined by the user. The values shown are the lengths, in bytes, of the elements of the User-defined item.

Example

For an example, refer to IsRoleSelect.

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

DicomAssociate Class
DicomAssociate Members
Overload List
UserInformationCount Property
GetUserInformationType Method
GetUserInformationDataLength Method
GetUserInformationDataPtr Method
GetUserInformationData Method
SetUserInformation(Int32,Byte,IntPtr,Int32) Method
DeleteUserInformation Method
